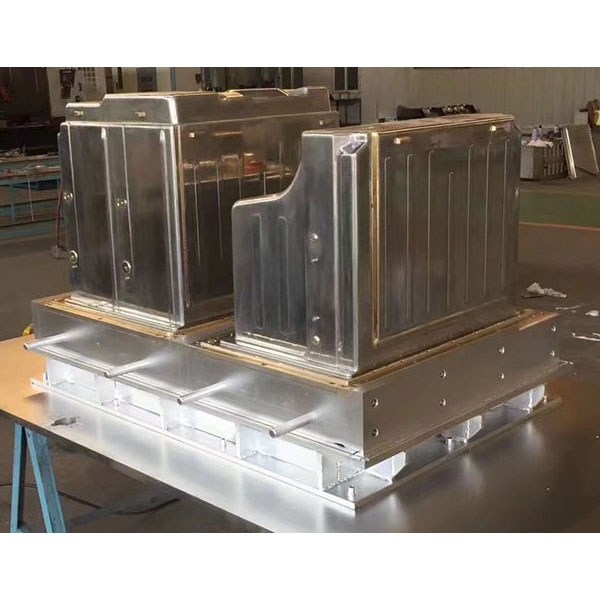

vacuum forming mould for inner box panels for packaging

Inner box panel vacuum forming moulds can, through precision machining, well-designed mould structure, and surface treatment, produce inner liners with consistent appearance, precise fit, and functional properties.

Applicable materials:

1. mould materials: aluminum alloys (such as 6061, 7075), tool steels (such as P20, H13), etc. Aluminum moulds offer fast machining, low cost, and ease of modification; steel moulds are wear-resistant, have a long service life, and are suitable for high-volume, long-term production.
2. Forming sheet materials: common thermoplastics such as ABS, HIPS, PS, PET, PVC, PC, etc.; multi-layer composite sheets or surface-functional coated materials (antistatic, flame-retardant, etc.) can also be accommodated.

Advantages and features:

1. Excellent appearance and fit: precision machining and surface treatment ensure dimensional stability, smooth surfaces, and accurate assembly fit of formed parts.
2. Controllable cost and lead time: aluminum moulds have lower cost and shorter manufacturing cycles, suitable for rapid prototyping and small-batch production; steel moulds are wear- and heat-resistant, suitable for large-volume long-term production.
3. Highly customizable: support for multi-cavity designs, inserts, and embedded metal parts or pre-installed components to facilitate downstream assembly and functional integration.
4. Easy iteration and maintenance: aluminum moulds are easy to modify during trial production, shortening product development cycles; moulds are designed with maintenance convenience in mind to extend service life.
5. High thermal response efficiency: good thermal conductivity helps shorten forming cycle times and improves production efficiency and stability.

Typical application areas of inner box panel vacuum forming moulds:

1. Packaging industry: high-end gift box liners, electronic product inner trays, transport protection liners, etc.
2. Furniture and cabinets: drawer liners, box liners, functional inner panels, etc.
3. Instruments and equipment: equipment case liners, toolbox liners, protective liners for electronic instruments, etc.
4. Automotive and transportation: storage box liners, trunk dividers, or small interior panels (often used for prototypes or small batches).
5. Exhibits and displays: product display box liners, sample display trays, etc.
6. Customized projects: production of inner liners with special textures, functions, or structures according to customer designs.
