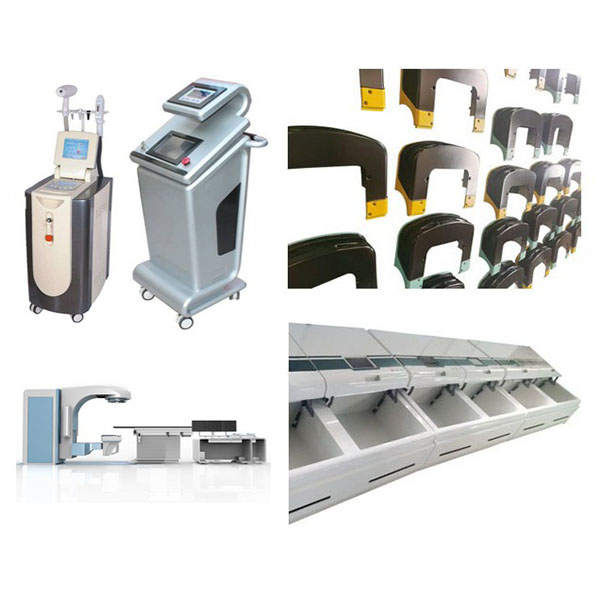

vacuum-formed instrument housings offer protection

The vacuum forming process is suitable for small to medium production volumes and is well suited to instrument panels and housings that are large in size, have complex surfaces, or require rapid iteration. Vacuum-formed housings offer advantages such as low forming costs, customizable surfaces, lightweight structures, and short processing cycles, and are widely used in laboratory instruments, testing equipment, portable instruments, medical device enclosures, and industrial control cabinets.

Main materials and specifications:

1. Common materials: Engineering plastics or modified medical/industrial grade sheets such as PC (polycarbonate), ABS, HIPS, PMMA (acrylic), PETG, PP, etc., selectable according to impact resistance, temperature resistance, transparency, and electrical properties.
2. Thickness range: Commonly 0.5 mm to 4.0 mm, with thickness distribution customizable according to enclosure rigidity and detail reproduction requirements.
3. Functional materials: Options include flame retardant (UL rating), conductive or antistatic formulations, UV resistant, low VOC/low extractables, biocompatible and chemically resistant formulations.
4. Surface properties: Support high transparency, semi-transparency, matte, textured, or special coating treatments to meet appearance and functional requirements.

Key forming process points for vacuum-formed instrument housings:

1. Material preparation: Ensure sheets are free of scratches and contamination and implement strict batch control; apply lamination or backing when necessary to enhance rigidity, improve appearance, or increase shielding performance.
2. Heating and forming: Set uniform heating profiles and pre-stretch parameters according to material characteristics, control heating uniformity to avoid color variation and stress concentration; use vacuum or combined vacuum‑pressure forming to ensure geometric detail reproduction and wall thickness distribution.
3. Mold design: Molds are typically manufactured from aluminum alloys or steel; cavity design should optimize venting, locating and cooling channels. Mold surface finish and texture directly determine the appearance quality of the finished part.
4. Cooling and demolding: Control cooling rate to ensure dimensional stability and relieve internal stress; use protective fixtures during demolding to avoid scratches or deformation.
5. Trimming and post-processing: After forming, perform CNC trimming, punching, bending, hot folding, or heat sealing, and reserve installation positions for standoffs, inserts, and display windows.

Surface finishing and functionalization:

1. Printing and marking: Support screen printing, heat transfer printing, laser marking, or labeling for LOGO, scales and operating instructions.
2. Coatings and laminates: Provide scratch-resistant coatings, antibacterial coatings, antistatic or conductive coatings, as well as transparent or decorative laminates.
3. Colors and textures: Support single-color or multi-color lamination per customer requirements and offer various texture effects to enhance tactile and visual quality.
