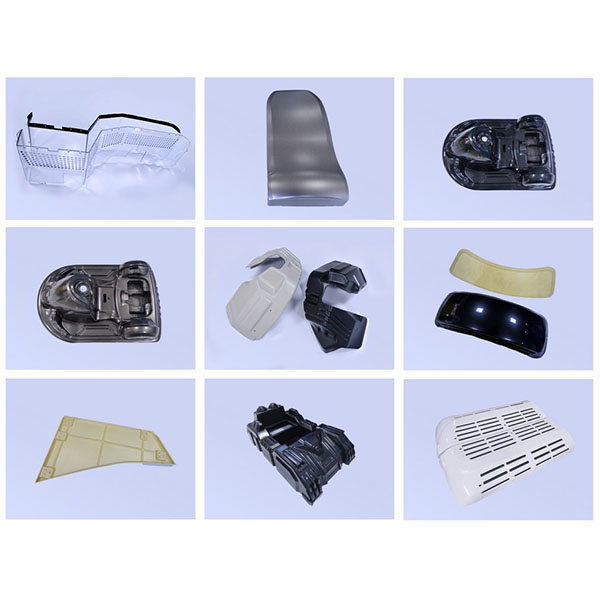

vacuum-formed automotive interior and exterior trim parts

vacuum-formed automotive interior and exterior trim parts are a category of automotive components manufactured from thermoplastic sheets by vacuum or vacuum-pressure forming processes, and are widely used for interior trim panels, instrument panel covers, door trim panels, trunk trims, headliners, exterior decorative covers, and trim strips.

Key forming process points:

1. Material preparation: Ensure sheets are flat, free of inclusions, and batch-consistent; perform lamination or backing when necessary to enhance structural strength or decorative effects.
2. Heating and forming: Set precise heating profiles and pre-stretch parameters according to material type; use vacuum or combined vacuum-pressure forming to reproduce details and control wall thickness distribution.
3. Molds and locating: Mold materials commonly use aluminum alloys or steel; optimize venting, locating pin, and cooling channel designs. Mold surface treatment determines finished surface quality and demolding performance.
4. Cooling and demolding: Control cooling rates to ensure dimensional stability and avoid warpage; use appropriate fixtures during demolding to prevent scratches or deformation.
5. Post-processing and assembly: Include CNC trimming, punching, hot folding, bonding, ultrasonic welding, insert assembly, and painting, carried out in clean or controlled workshops to ensure assembly precision and surface quality.

Advantages and features:

1. Lightweight and cost-effective: Compared with traditional injection-molded or metal parts, vacuum-formed parts offer clear tooling and production cost advantages for low- to medium-volume runs.
2. Complex surfaces and large-size adaptability: Suitable for forming large-area or complex-curved trim pieces, such as instrument panel covers and door inner panels.
3. Strong surface customizability: Supports various surface finishes and decorative processes, facilitating branded aesthetic design.
4. Short production cycle: Mold development and sample delivery cycles are relatively short, supporting product iteration and rapid ramp-up.
5. Recyclable and eco-friendly options: Recyclable materials and environmentally friendly formulations can be selected, supporting vehicle lightweighting and sustainable manufacturing strategies.

Typical application scenarios:

1. Instrument panel and center console covers: Large-size, complex-curved parts requiring both decorative surface and structural stability.
2. Door inner panels and armrests: Require wear resistance, tactile quality, and precise installation and locating features.
3. Trunk trim panels and liners: Emphasize impact resistance, weatherability, and interface design for mounting.
4. Headliners and sun visors: Key requirements include light weight, sound absorption, and surface texture quality.
5. Exterior decorative covers and trim strips: Must maintain appearance consistency while meeting weatherability and fastening method requirements.
