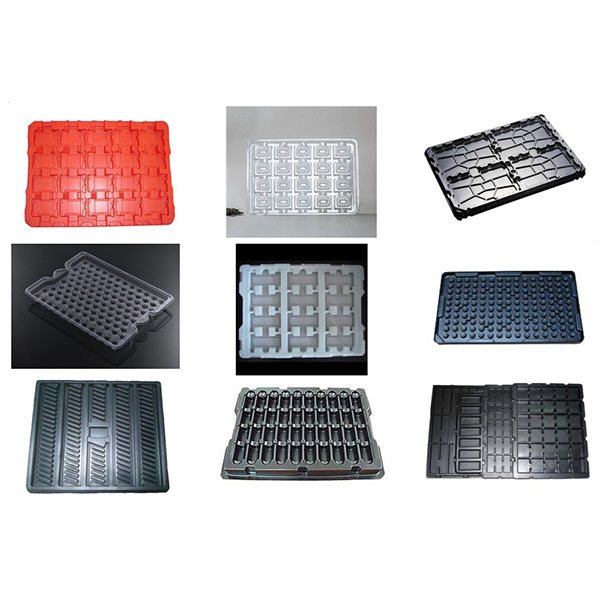

thin-sheet vacuum forming tray

thin-sheet vacuum forming tray for protective packaging

Thin-sheet vacuum forming trays are specifically designed as lightweight, cost-sensitive protective liners. By vacuum forming thin thermoplastic sheets, they can rapidly produce trays and liners with high conformity, structural stability, and a smooth appearance.

Description

Thin-sheet vacuum forming trays are widely used for electronic products, precision instruments, jewelry, food trays, and gift packaging. This process is suitable for short-run, small- to medium-volume production and offers significant advantages in material usage and logistics costs.

Applicable materials:

  1. Forming sheet materials: Common thin thermoplastic materials include HIPS, PS, PET, PVC, ABS, PP, etc. Functional sheets or multi-layer co-extruded sheets can be selected according to antistatic, moisture-resistant, or temperature-resistant requirements.
  2. Mold materials: Choose aluminum alloy or tool steel molds based on production volume and precision requirements. Aluminum molds are suitable for low-cost rapid prototyping and short- to medium-run production, while steel molds are suitable for high-volume long-term production and have a longer service life.

Advantages and features of thin-sheet vacuum forming trays:

  1. Lightweight and cost-effective: Thin-sheet materials reduce material usage, offer high forming efficiency, and result in low unit costs, making them suitable for large-scale packaging applications.
  2. Good protection: Load-bearing and cushioning structures can be designed for critical product areas to provide secure fixation and shock absorption.
  3. Rapid prototyping and short lead times: Aluminum or soft molds enable quick sampling, shortening the cycle from design to sample approval.
  4. High customizability: Capable of producing irregular cavities, multi-level steps, inserts, and locally thickened areas to meet various product fixation and display needs.
  5. Environmental friendliness and recyclability: Some materials (such as PET and PS) can be recycled, supporting green packaging strategies.

Typical application areas of thin-sheet vacuum forming trays:

  1. Electronic products: phone accessories, earphones, camera accessories, PCB trays, etc.
  2. Jewelry and gifts: jewelry liners, high-end gift box trays, gift display liners.
  3. Food and pharmaceuticals: disposable trays, medicine partition trays (require food-grade or medical-compliant materials).
  4. Tools and hardware: small tool trays, parts partition trays.
  5. Industrial equipment and instruments: precision part positioning trays, transport and storage liners.
