sheet metal punching solutions for efficient production

Sheet metal punching offers fast processing speeds, high repeatability, excellent material utilization, and low manufacturing costs. It is suitable for mass production of electronic enclosures, distribution cabinets, heat sinks, metal panels, decorative parts, and various structural components.

Applicable materials and thickness range:

1. Common materials: cold-rolled steel, galvanized steel, stainless steel (304, 316), aluminum alloys (e.g., 6061, 5052), copper, and other metals.
2. Processing thickness: depends on equipment and material strength; adjustable and verifiable according to project requirements.

Processing equipment and process types:

1. CNC punch presses: suitable for multi-step, complex nesting and medium-to-small batch production; offer flexible die change and high repeatable positioning accuracy.
2. Bench-top and vertical stamping presses: suitable for high-capacity, large-volume processing of single hole types or single-part types.
3. Combined processing (punching + shearing, bending): can be integrated with bending, shearing, deep drawing and other operations to achieve one-stop forming.

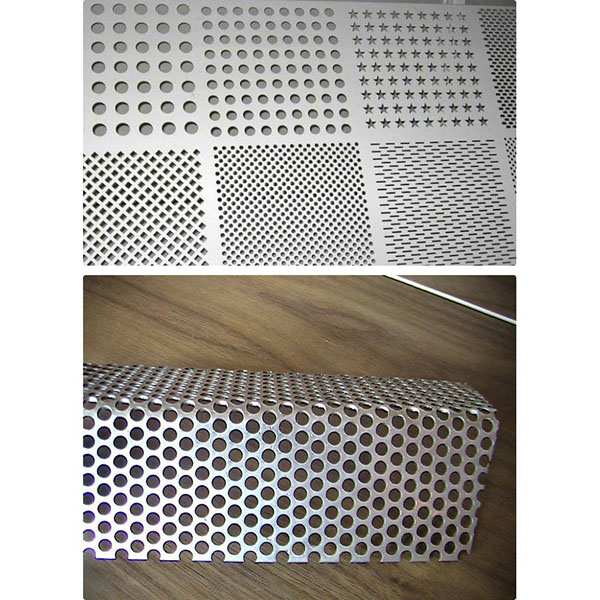

4. Precision dies and quick-change die systems: support various hole types (round, square, slotted, irregular) and nested processing.

Processing capability and accuracy:

1. Hole positional accuracy: typical repeatable positioning accuracy can reach ±0.05 mm (depending on material, thickness and equipment).
2. Hole size and edge distance: small-hole processing and dense layouts are achievable depending on material and die requirements; feasible dimensions and spacing are evaluated prior to processing to ensure final part quality.
3. Processing speed and capacity: CNC nesting optimization significantly improves material utilization and shortens processing cycles, suitable for medium-to-high volume production.

Surface treatments and post-processing:

1. Deburring and chamfering: after punching, deburring and chamfering can be provided to remove sharp edges, improving safety and assembly.
2. Surface treatment options: powder coating, painting, electroplating, anodizing, phosphating, or pre-paint treatments, etc., performed according to customer requirements for appearance and corrosion protection.
3. Secondary processing: can be combined with bending, welding, laser cutting, stamping forming, turning/milling, or assembly and other downstream operations to provide complete component solutions.

Application areas of sheet metal punching:

1. Communication and electronic enclosures, distribution cabinets and control panels, electrical housings
2. Automotive parts, chassis trim, brackets and fasteners
3. Architectural hardware, ventilation and heat-dissipation panels, HVAC equipment panels
4. Household appliances and white goods panels, decorative metal parts
5. Industrial equipment racks, pallets, partitions and other structural components
