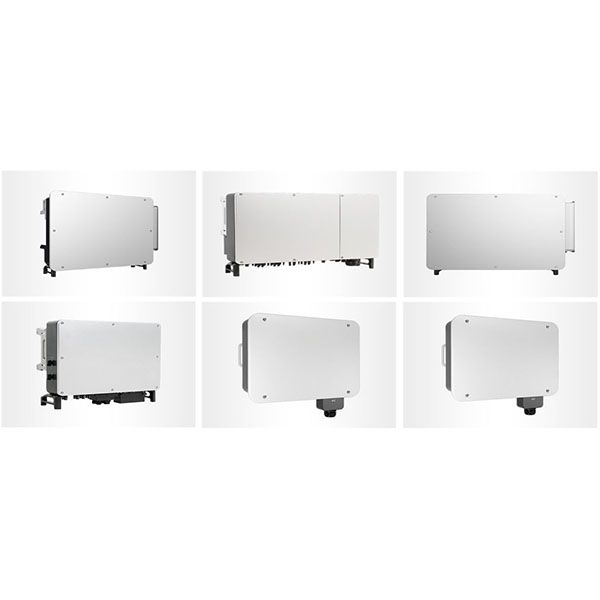

sheet metal inverter housing with EMI shielding and vents

The sheet metal inverter housings balance strength, thermal management, and electromagnetic compatibility (EMC), and can be customized with ventilation openings, grounding points, mounting brackets, and cable entries according to the customer’s equipment layout, installation method, and functional requirements. They are widely used in industrial inverters, photovoltaic inverters, electric vehicle charging equipment, uninterruptible power supplies (UPS), and related fields.

Design and functional considerations for sheet metal inverter housings:

1. Thermal design: Arrange ventilation holes, vortex channels, fan mounting positions, and heatsink mounting points appropriately; support natural convection and forced-air cooling schemes to meet the thermal management needs of inverter power density.
2. EMC and shielding: Use continuous contact surfaces, conductive coatings, or conductive gaskets; reserve grounding terminals and shielding partitions to reduce electromagnetic interference (EMI) and meet EMC standard testing requirements.
3. Wiring and mounting openings: Reserve accurate cutouts and screw holes according to the locations of the motherboard (PCB), capacitors, transformers, and terminal blocks; provide installation-friendly clips, standoffs, and cable ducts to ensure assembly consistency.
4. Structural strength and vibration resistance: Design stiffening ribs, load-bearing supports, and vibration-mounting points to suit vibrating or mobile use environments, improving reliability and protecting internal components.
5. Protection and sealing: Design sealing grooves, rubber seals, and drainage holes according to required IP rating to meet dustproof, waterproof, and industrial environment protection requirements.
6. Maintainability: Use removable side panels, quick-release panels, or modular structures to facilitate on-site maintenance, fan replacement, and component upgrades.

Manufacturing processes and capabilities:

1. Cutting and holemaking: Laser cutting, plasma cutting, punching, and CNC milling are used for high-precision contour cutting and holemaking.
2. Bending and forming: CNC press brakes (Press Brake) perform box bending, flange forming, and mating-edge treatment to ensure bending angles and positioning accuracy.
3. Welding and assembly: Spot welding, MIG, TIG welding, bolted connections, and riveting are combined with dedicated fixtures to achieve box strength and assembly precision.
4. Surface treatment: Shot blasting, phosphating pretreatment, powder coating, painting, electrophoresis, or anodizing (for aluminum) improve weather resistance and appearance consistency.
5. Finishing and assembly: Milling holes, tapping threads, deburring, post-bend reshaping, and functional testing support accessory installation and complete-set delivery.

Application areas:

Suitable for industrial inverters, grid-tie and off-grid photovoltaic inverters, electric vehicles and charging equipment, UPS power supplies, wind controller housings, energy storage systems, and housings for various power electronic devices.
