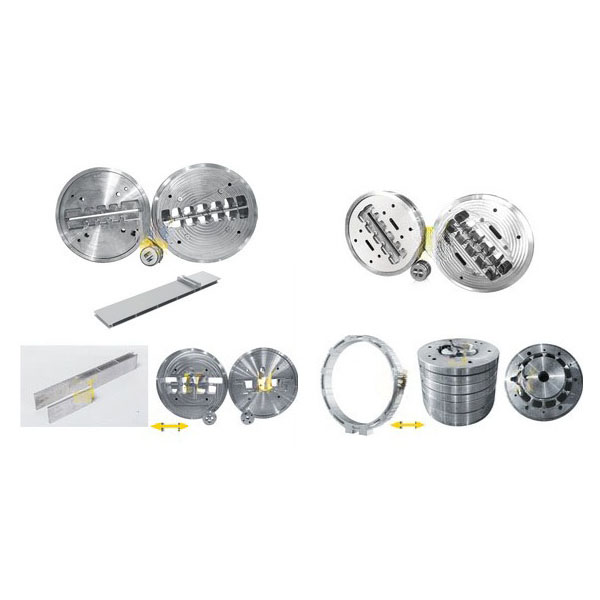

rail transit profile extrusion die for vehicle use

The structure and flow channels of the rail transit profile extrusion die have been specially optimized. It is suitable for extrusion processing of various materials such as aluminum alloys, engineering plastics, and composite materials, and can maintain excellent surface quality and geometric accuracy in high-capacity production environments.

Technical specifications:

1. Applicable materials: aluminum profiles, engineering plastics (PVC, PE, PP, ABS, PC, etc.), and composite materials.
2. Die material: commonly tool steel or aluminum alloy die bodies; critical working surfaces are heat-treated and surface-strengthened (e.g., nitriding, plating, or shot peening) to improve wear resistance and anti-adhesion performance.
3. Production mode: continuous extrusion forming, combined with stretching, cooling, traction, and cutting processes, suitable for automated extrusion production lines.
4. Accuracy and tolerances: high repeatability in cross-section dimension control and fit tolerance can be achieved depending on profile cross-section complexity and material characteristics (specific tolerances to be confirmed based on drawings and process conditions).
5. Service life and maintenance: die life depends on material, production volume, and maintenance; proper operation and regular maintenance can ensure long-term stable operation.

Main features:

1. Precise cross-section control: precisely designed die cavities and die lips ensure dimensional and geometric accuracy of extruded profiles, reducing downstream machining and assembly adjustments.
2. Flow channel and temperature control optimization: reasonable melt flow distribution and temperature management reduce stagnation, foaming, or deformation defects, improving profile surface finish and internal density.
3. High strength and wear resistance: die materials treated with heat treatment and surface-strengthening processes significantly improve wear resistance and anti-adhesion, reducing maintenance frequency and downtime costs.
4. Modular design and maintainability: supports segmented, insert, or replaceable module designs, facilitating rapid replacement of wear parts, section detail adjustments, or structural upgrades, shortening downtime for maintenance.
5. Precision machining and assembly interfaces: employing high-precision processes such as CNC and EDM, together with strict assembly and alignment procedures, ensures accurate die gaps and mating surfaces for precise integration with extrusion, traction, and cooling systems.
6. Balancing capacity and energy efficiency: optimizing die heat dissipation and flow channel design while meeting product quality requirements helps reduce energy consumption and improve production efficiency.

Applications:

1. Aluminum profiles for urban rail vehicles, including body structures and interior framing.
2. Functional profiles for urban transit, metro, and tram systems, such as guide rails, seals, and skin accessories.
3. Decorative and structural profiles for stations, trackside facilities, and onboard equipment.
4. Housings and cable-tray profiles for electronics and electrical components related to rail transit.
5. Other rail-transit-specific profile production scenarios requiring high strength, high dimensional consistency, and long-term durability.
