precision metal stampings for oem and mass production

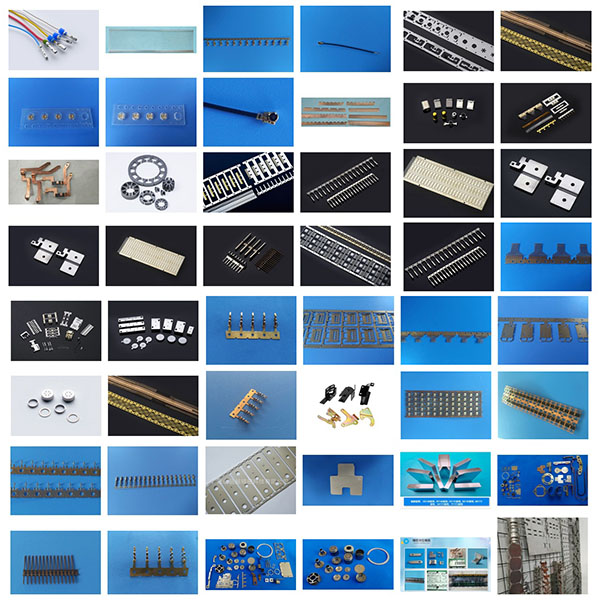

With high repeatability, stable dimensions, and good surface condition, they are well suited for large-volume mass production and automated assembly requirements.

Main features of precision metal stampings:

1. High accuracy and consistency: Precision tooling and strict process control are used to ensure dimensional tolerances and consistent assembly fit.
2. High production capacity and low cost: Compatible with continuous or high-speed stamping lines, suitable for large-volume production with low unit cost and stable lead times.
3. Multi-operation integration capability: Blanking, bending, deep drawing, hemming, forming, trimming, and other operations can be performed within the die or completed in downstream processes, reducing handling between operations and cumulative tolerances.
4. Good surface quality: Supports a variety of surface treatments to meet corrosion resistance, conductivity, and appearance requirements.
5. Customizability: Tooling and processes can be customized according to drawings or samples to accommodate special materials or complex shapes.

Applicable parts and application scenarios for precision metal stampings:

1. Electronic connectors, conductive terminals, and contact pieces;
2. Structural brackets, mounting plates, internal supports, and fasteners;
3. Heat sinks, shields, and ventilation grilles;
4. Door hinges, riveted parts, decorative covers, and functional small hardware;
5. These parts typically require dimensional stability, surface treatments that meet corrosion resistance and electrical connection standards, and compatibility with automated assembly lines.

Common materials and surface treatment recommendations:

1. Common materials: SPCC (cold-rolled steel), SECC, electro-galvanized steel (electrolytic plate), stainless steel (e.g., 304/430), copper and copper alloys, brass (H62), aluminum alloys, etc.
2. Surface treatments: Nickel plating, tin plating, zinc plating, electrophoretic coating (e-coating), painting, phosphating, chemical plating, etc.; conductive parts typically require specialized coatings to ensure solderability and electrical performance.
3. Material and treatment compatibility: Surface treatments must be compatible with the base material and subsequent processes (such as soldering or electroplating) to avoid delamination, discoloration, or adverse effects on conductivity.

Design and process control key points:

1. Tolerances and fits: Define critical mating surfaces and allowable tolerances during the design phase; optimize tool positions, strip/blank layout, and hold-down structures to stabilize formed dimensions.
2. Die rigidity and wear resistance: Select appropriate die steels and apply heat treatment and surface hardening to ensure long-term stable production and reduced maintenance frequency.
3. Chip removal and ejection: Properly design chip removal channels, ejection mechanisms, and stripping methods to prevent jamming and surface scratches.
4. Springback compensation and operation sequencing: Design springback compensation for bent parts and, when necessary, split complex operations into stages to improve yield.
5. Temperature control and deformation management: Implement cooling or temperature-control measures according to material and production pace to reduce thermal deformation and dimensional drift.
