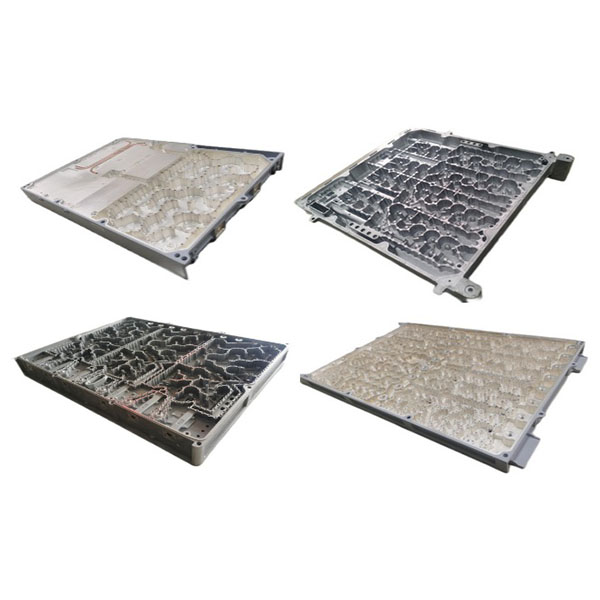

communications filter castings for rf prototyping use

communications filter castings are suitable for prototype development, small-batch production, and integrated delivery in conjunction with subsequent machining.

Key features:

1. Precision cavity control: Able to accurately form the cavity shapes required by filters and the coaxial and resonator structures, ensuring consistent electrical performance.
2. Excellent thermal conductivity and heat dissipation: Material selection and wall-thickness design can optimize heat transfer and support temperature stability in high-power applications.
3. Stable mechanical assembly interfaces: Provision and machining of locating holes, threaded holes, etc., to facilitate subsequent assembly and shielding connections.
4. Surface- and machining-friendly: Cast surfaces can be provided to suit plating, painting, or machining as required, reducing downstream processing.
5. Customizable: Support for customization based on customer drawings or 3D models, including provision of core boxes, core-pulling mechanisms, and local rib reinforcement designs.

Materials and processes:

We support a variety of metal materials, including aluminum alloys, copper alloys, cast iron, and stainless steel, selecting the appropriate material according to electromagnetic performance, thermal conductivity requirements, and mechanical strength. We use mature sand casting, precision casting, or low-pressure casting processes, combined with necessary heat treatment and stress-relief operations to ensure stable casting dimensions and material properties.

Accuracy and surface quality:

1. Dimensional tolerances can be controlled according to drawing requirements; critical cavities and mating surfaces can achieve higher precision.
2. Surface roughness and morphology can be optimized through molding-sand selection, mold treatment, and subsequent machining processes to meet plating and electrical contact requirements.

Customization and design for manufacturability of communications filter castings:

We can collaborate with customers during the design phase to optimize filter cavity structures, input/output ports, cooling channels and rib layouts to balance electromagnetic performance, manufacturability, and cost-effectiveness. For products requiring repeated assembly or tuning, we provide structures that facilitate repeatable positioning.

Quality control and inspection:

First-article inspection, trial casting validation, dimensional measurement, visual inspection, and necessary metallographic or chemical composition analysis. Marked inspections are performed on critical mechanical and electromagnetic interfaces to ensure delivered parts meet design requirements.

Typical application scenarios:

communications filter castings are widely used in communications base stations, radar, satellite communication equipment, RF front-end modules, and other electronic equipment housings and structural components that require precise cavities and good electromagnetic shielding.
