CNC machining of zirconia ceramics

CNC machining of zirconia ceramics for high durability

We provide professional CNC machining services for zirconia (ZrO2) ceramic parts. Based on zirconia’s high hardness, high strength and certain toughness, we develop dedicated machining processes, tooling strategies and fixture designs to achieve precise dimensions, high concentricity and excellent surface quality, suitable for applications requiring wear resistance, corrosion resistance and high‑temperature stability.

Description

Please provide part drawings (2D, 3D), material grade, critical mating dimensions and surface roughness requirements, operating conditions (temperature, load, medium), and estimated quantities for a quote or technical evaluation. Our engineering team will perform a manufacturability assessment, provide process recommendations, and deliver a detailed quotation based on the provided information to help the project progress efficiently.

Main advantages of CNC machining zirconia ceramics:

  1. Experience in machining high‑wear, high‑strength materials, resulting in highly durable finished parts.
  2. Precise dimensional control and concentricity assurance, supporting micron‑level tolerance requirements.
  3. Dedicated diamond tooling and ultra‑fine grinding processes to ensure low roughness on inner bores and mating surfaces.
  4. Complete quality management and functional testing systems to support consistent batch delivery.

Equipment and tooling:

  1. Machines: High‑rigidity CNC lathes, three‑axis and five‑axis machining centers, dedicated internal‑bore machining machines, precision grinders, and ultra‑precision spindles to accommodate multi‑operation machining of profiles, inner bores, and end faces.
  2. Tools and consumables: Diamond‑coated turning tools, diamond end mills, diamond grinding heads and wheels, PCD tools, ultra‑fine abrasives and polishing consumables; tool geometry and cutting/grinding parameters are optimized for zirconia.
  3. Auxiliary systems: Temperature‑controlled fixtures or thermostatic platforms, vibration suppression and dynamically balanced spindles, ultra‑high‑pressure cooling with particulate filtration, online measurement and automated loading/unloading systems to improve machining stability and consistency.

Main machining methods for CNC machining of zirconia ceramics:

  1. Precision roughing and finishing turning/milling: Establish datums and remove the majority of material allowance to prepare for fine grinding and honing.
  2. Diamond grinding and honing: Achieve strict tolerances and low inner‑bore roughness through multiple grinding and honing passes, ensuring consistent fits.
  3. Ultra‑fine polishing and CMP: Apply mirror‑grade finishes to critical mating surfaces and sealing faces to reduce friction and prevent particle entrapment.
  4. Ultrasonic vibration assisted machining: Use ultrasonic vibration in thin‑walled or complex features to reduce cutting forces and suppress crack propagation.
  5. EDM and micro‑machining trimming: Perform local trimming and compensation on complex internal cavities and fine geometries.

Cooling, chip evacuation, and fixturing design:

  1. Cooling strategies: Use controlled cooling and highly filtered lubricants, and when necessary combine with coolant circulation and temperature‑controlled fixtures to avoid thermal deformation and dimensional drift.
  2. Chip evacuation and cleaning: Optimize toolpaths and chip channels, and use ultrasonic/high‑pressure cleaning, vacuum chip removal and air blow‑off to prevent particles embedding in machined surfaces.
  3. Fixturing solutions: Custom mandrels, concentric locating fixtures, multi‑point supports and elastic clamping designs to reduce clamping stress and ensure processing stability for thin‑walled parts.

Machinable specifications and typical applications:

  1. Materials: Zirconia (including modified systems such as Y‑TZP) and zirconia‑related composite or coated ceramics.

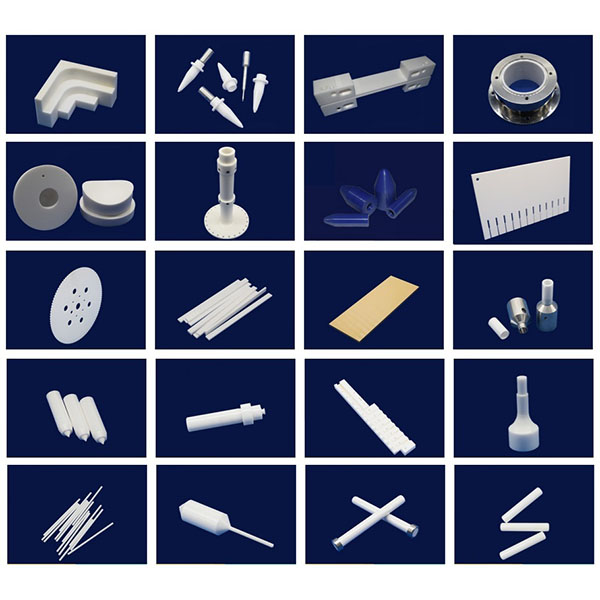

  2. Typical products: Ceramic bushings, sealing rings, wear‑resistant liners, sensor support components, high‑temperature structural parts, medical or optical components, etc.

Design recommendations and manufacturing notes:

  1. Wall thickness and length‑to‑diameter ratio: Avoid excessively thin walls or overly large length‑to‑diameter ratios; retain clamping areas or add stiffening ribs in the design when necessary to improve manufacturability.
  2. Chamfers and fillets: Design appropriate chamfers or fillets at hole entries, assembly edges and mating surfaces to reduce stress concentration and facilitate assembly.
  3. Machining allowance: Clearly specify roughing and finishing allowances on drawings; reserve material on critical mating surfaces for final grinding/polishing.
