CNC machining of filter housings

CNC machining of filter housings for precision fluids

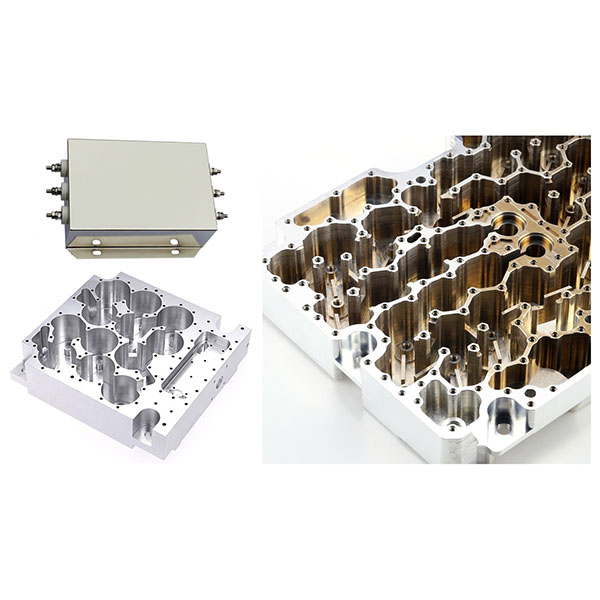

Filter housings are critical structural components in many industrial and electronic systems, responsible for positioning filter elements, providing seals and offering mechanical support. We provide high‑precision CNC machining services for industrial filtration, liquid filtration, RF and microwave filters, and gas handling equipment.

Description

We focus on inner-cavity dimensional control, sealing-surface accuracy, and assembly consistency to meet stringent sealing, fluid‑dynamic, and electromagnetic performance requirements.

CNC machining capabilities and equipment for filter housings:

  1. Main equipment: five‑axis machining centers, vertical and horizontal CNC machining centers, turn‑mill composite centers, precision CNC lathes and large gantry machining centers, equipped with high‑precision indexing heads and dynamic balancing measurement stands.
  2. Machining capabilities: complete multi‑face machining in one setup, high‑precision five‑axis complex contour and internal cavity machining, deep‑hole and blind‑hole machining, internal threading and small‑hole machining, stable machining of thin‑walled parts, and mirror finishing. Capable of stably machining asymmetric cavities, complex flow channels, and narrow‑gap structures.
  3. Automation and inspection: supports automatic loading/unloading, bar feeding, online measurement feedback, and tool life management to improve batch consistency and changeover efficiency.

Material support and blank forms for filter housings:

  1. Supported materials: aluminum alloys (e.g., 6061, 7075), stainless steels (e.g., 304, 316, 17‑4PH), titanium alloys, brass, copper alloys, and engineering plastics (e.g., PEEK, PTFE), with material selection based on corrosion resistance, strength, and thermal/electrical conductivity requirements.
  2. Blank forms: plate stock, bar stock, milled blanks, forged or cast blanks, and customer‑supplied blanks (blank). We can recommend blank dimensions based on part geometry and machining allowance to reduce cutting volume and control costs.

Tools, fixturing and key machining process points:

  1. Tools and fixturing: use coated carbide tooling, micro‑cutting tools and specialized anti‑vibration fixtures; design locating datums to ensure repeatable clamping and machining rigidity.
  2. Key processes: prioritize machining sequences that complete critical features in a single setup, use five‑axis machining to reduce secondary clamping errors, and perform segmented finishing and thermal‑deformation compensation for sealing and mating surfaces.
  3. Thermal management: control cutting heat input during finishing stages and employ temperature‑controlled workshops or part annealing to reduce residual stress and deformation.

Sealing surfaces and surface quality control:

  1. Surface roughness and geometric tolerances: achieve low roughness and strict control of concentricity, parallelism and perpendicularity for sealing, mating and contact surfaces.
  2. Surface treatments: provide anodizing, electroless plating, nickel plating, metal plating, phosphating, electrophoretic coating and anti‑corrosion coatings to improve corrosion and wear resistance. Also support nondestructive cleaning and ultrasonic cleaning to ensure cavity cleanliness.

Assembly, testing and functional verification:

  1. Assembly services: provide mating‑part pre‑assembly, seal installation and controlled fastening torque to deliver ready‑to‑install assemblies.
  2. Functional testing: perform air and liquid tightness tests, flow and pressure‑drop testing, roughness and surface‑energy checks, and, if required, dynamic balancing or vibration testing, with test reports produced per customer requirements.

Ordering and contact:

Please submit part drawings or samples and specify material grade, key dimensional tolerances, surface treatments, functional test requirements and estimated quantities. Upon confirmation of complete requirements we will provide process evaluation, quotation and lead‑time recommendations, and can arrange sample trial production and performance verification.
