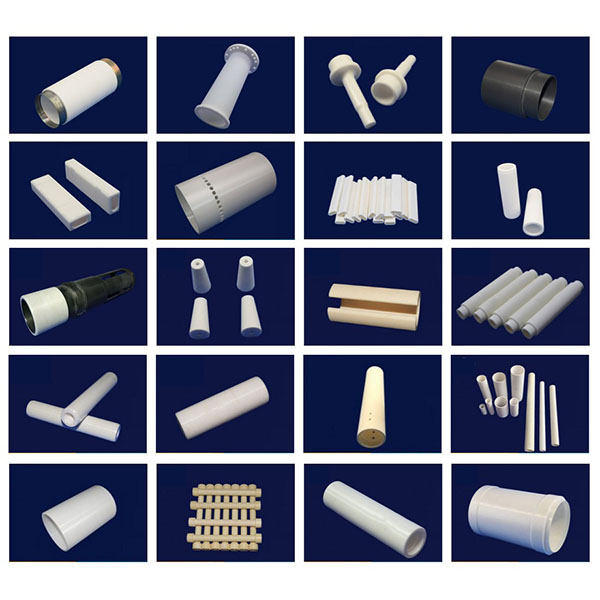

CNC machining of ceramic tubes for precision fluid use

With specialized machine tools, diamond tooling, and mature processes, we achieve precise forming and dimensional stability tailored to the high hardness and brittleness of ceramic materials, making them suitable for pipeline and component applications in chemical processing, pharmaceuticals, petroleum, semiconductor, medical devices, fluid metering, and high-temperature/highly corrosive service conditions.

Equipment and tooling:

1. Machines and rigidity: Equipped with high-rigidity CNC lathes, three-axis/five-axis CNC machining centers, internal bore grinders, honing machines, precision external cylindrical grinders, and specialized micro‑machining equipment to meet the positioning and repeatability accuracy requirements for long shafts, thin‑walled and slender workpieces.
2. Tools and consumables: Using diamond internal‑bore turning tools, diamond end mills, diamond grinding wheels, ultra‑hard coated tools, and specialized fine‑grinding consumables, we optimize tool geometry and cutting/grinding parameters for ceramics to reduce chipping and cracking risks.
3. Auxiliary equipment: High‑precision spindles, ultra‑high‑pressure cooling and particulate filtration systems, fixture temperature‑control devices, and vibration suppression systems to ensure machining stability and surface integrity.

Main machining methods for CNC machining of ceramic tubes:

1. Internal bore turning and precision boring: Used to achieve datum positioning and near‑net internal bore forming after roughing, ensuring alignment between bore axis and end‑face datum.
2. Diamond grinding and honing: Using diamond grinding and honing processes to achieve strict radial tolerances and low surface roughness, especially suitable for sealing or sliding mating surfaces.
3. Ultrasonic vibration assisted machining (USM) and ultra‑fine grinding: Reduce cutting forces on brittle ceramics, suppress crack propagation, and improve edge integrity for thin‑walled and slender parts.
4. EDM and micro‑machining: Used for local forming and trimming of complex end faces, slots, micro‑holes, or hard‑to‑reach features.
5. Polishing and chemical mechanical polishing (CMP): Produce mirror‑grade finishes on sealing end faces or mating surfaces to further reduce friction and improve sealing performance.

Cooling, chip evacuation, and fixturing:

1. Cooling strategies: Use controlled cooling and filtered lubricants, combined with temperature‑controlled fixtures or cooling circulation, to reduce local temperature rise and thermal stress, preventing dimensional drift and crack formation.
2. Chip evacuation and cleaning: Optimize toolpaths and chip evacuation routes, combined with ultrasonic/high‑pressure cleaning, air blow‑off, and vacuum chip removal processes to prevent particles embedding in bores or end faces that could affect performance.
3. Fixturing solutions: Custom mandrels, concentric support fixtures, and multi‑point support designs, using elastic locating or flexible supports to reduce clamping stress and ensure thin‑walled parts do not deform.

Machinable materials and typical applications:

1. Typical materials: Alumina (Al2O3), silicon nitride (Si3N4), silicon carbide (SiC), aluminum nitride (AlN), and functional ceramic composite materials.
2. Typical applications: Wear‑ and corrosion‑resistant pipeline linings, sensor protection tubes, fluid metering tubes, nozzles and flow path components, linings for semiconductor and chemical equipment, and high‑precision ceramic tubes for medical and analytical instruments.

Design recommendations and manufacturing considerations:

1. Wall thickness and length‑to‑diameter ratio: Avoid overly thin walls or excessively high length‑to‑diameter ratios; when necessary reserve machining supports or reinforce ribs at the design stage to improve manufacturability and in‑service reliability.
2. Fillets and chamfers: Provide appropriate fillets/chamfers at ports, openings, and joints to reduce stress concentrations and facilitate machining and assembly.
3. Allowances and fits: Specify machining allowances and assembly fit tolerances clearly; critical sealing or sliding mating surfaces should reserve removable stock for finishing.
4. Modularization and assembly: For extra‑long or large‑diameter ceramic tubes, consider segmented machining and precision assembly to reduce breakage risk and ease transportation.
