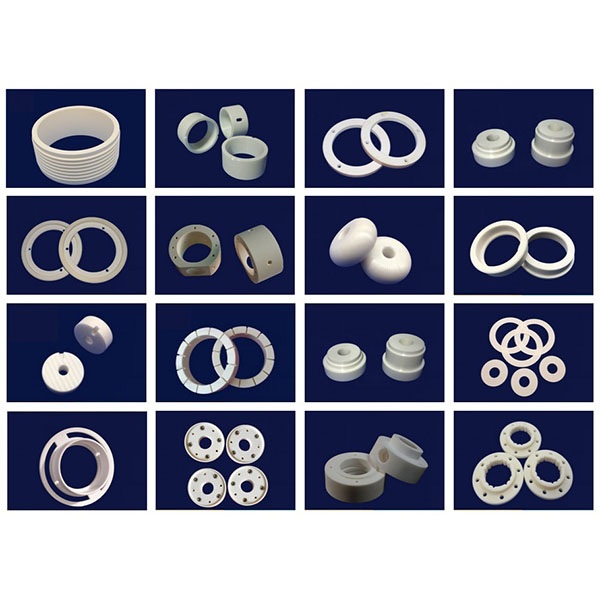

CNC machining of ceramic rings for high performance parts

With specialized machine tools, diamond tooling, and mature processes, we achieve precise forming, low friction coefficients, and excellent wear and corrosion resistance tailored to the high hardness and brittleness of ceramic materials. These capabilities make our products widely applicable to bearing rings, valve seats, sensor rings, sealing washers, and various annular components operating under high-temperature, high-wear, or corrosive conditions.

Equipment and tooling:

1. Machines and rigidity: Equipped with high-rigidity CNC lathes, three-axis and five-axis CNC machining centers, internal and external cylindrical grinders, honing machines, precision turn-grind compound machines, and specialized micro‑precision machining equipment to meet the clamping, positioning, and repeatability accuracy requirements for small bore, high diameter‑to‑thickness ratio, and thin‑walled ring components.
2. Tools and consumables: Using diamond internal and external turning tools, diamond end mills, diamond grinding wheels, ultra‑hard coated tools, and fine‑grinding consumables, we optimize tool geometry and cutting/grinding parameters for ceramics to reduce chipping, cracking, and thermal damage risks.
3. Auxiliary equipment: High‑precision spindles, temperature‑controlled fixtures, ultra‑high‑pressure cooling and particulate filtration systems, vibration suppression devices, and dedicated fixtures (mandrels, sleeves, elastic locating devices) to ensure machining stability and surface integrity.

Main machining methods for CNC machining of ceramic rings:

1. Precision turning and internal/external boring: Used for establishing datums on blanks, concentric locating, and semi‑finishing to ensure alignment of internal and external axes and end‑face datum conformity.
2. Internal and external grinding and honing: Employ diamond grinding and fine honing processes to achieve strict radial tolerances and low surface roughness, meeting requirements for rolling or sliding fits.
3. Ultrasonic vibration assisted machining (USM) and ultra‑fine grinding: Reduce cutting forces and suppress crack propagation, particularly suitable for thin‑walled or highly brittle ceramic ring structures.
4. EDM and micro‑machining: For local forming and trimming of complex geometries, internal/external grooves, locating keyways, or very small bores.
5. Polishing and chemical mechanical polishing (CMP): Produce mirror‑grade finishes on sealing contact surfaces or sliding mating surfaces to reduce friction and enhance sealing and service life.

Cooling, chip evacuation, and fixturing:

1. Cooling strategies: Use controlled cooling and filtered lubricants, combined with temperature‑controlled fixtures or cooling circulation, to avoid local temperature rise that could induce thermal stress and dimensional drift.
2. Chip evacuation and cleaning: Optimize toolpaths and chip evacuation channels for annular parts, combined with ultrasonic and high‑pressure cleaning, air blow‑off, and vacuum chip removal processes to prevent particles embedding in mating or sealing surfaces that would affect performance.
3. Fixturing solutions: Custom mandrels, concentric locating fixtures, elastic clamping, and multi‑point support designs to ensure stability and prevent deformation of thin‑walled or slender ring parts during machining.

Machinable materials and typical applications for CNC machining of ceramic rings:

1. Typical materials: Alumina (Al2O3), silicon nitride (Si3N4), silicon carbide (SiC), aluminum nitride (AlN), functional ceramic composite materials, and coated ceramics.
2. Typical applications: Bearing rings, valve seat rings, sealing rings, locating rings, fluid control and metering ring components, sensor protection rings, wear‑ and corrosion‑resistant annular components for semiconductor and chemical equipment, and high‑precision rings for medical and analytical instruments.

Design recommendations and manufacturing considerations:

1. Wall thickness and cross‑section design: Avoid overly thin walls and excessive inner/outer diameter ratios; when necessary reserve clamping/support regions or add annular stiffening ribs during the design phase to improve manufacturability and in‑service reliability.
2. Fillets and chamfers: Provide appropriate fillets or chamfers at inner/outer openings, end faces, and contact edges to reduce stress concentrations and facilitate machining and assembly.
3. Allowances and fit tolerances: Specify machining allowances and fit tolerances clearly; critical sealing or rolling mating surfaces should retain removable stock for final finishing and adjustment.
4. Modularized machining: For very large‑diameter or extra‑long rings, consider segmented machining and precision assembly joints to reduce breakage risk and facilitate inspection and transport.
