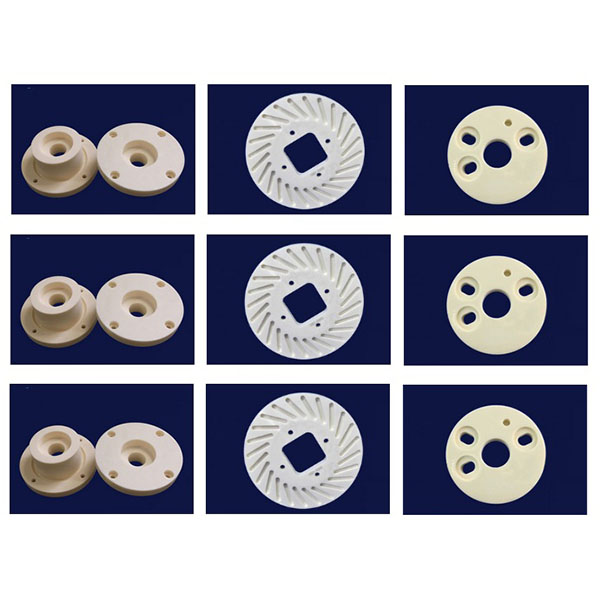

CNC machining of ceramic flanges for reliable sealing

With specialized machine tools, diamond tooling, and mature processes, we achieve precise forming, reliable sealing, and long-term corrosion and wear resistance tailored to the high hardness and brittleness of ceramics, making our solutions suitable for pipeline and equipment connection requirements in chemical processing, pharmaceuticals, petroleum, semiconductor, food processing, and high-temperature, highly corrosive service conditions.

Equipment and tooling:

1. Machines and rigidity: Equipped with high-rigidity five-axis and three-axis CNC milling machines, precision turn-mill centers, external cylindrical grinders, and specialized micro-machining equipment to meet the positioning and repeatability accuracy requirements for bolt-hole location, flange face flatness, and concentricity.
2. Tools and consumables: Using diamond end mills, diamond turning tools, diamond grinding wheels, and ultra-hard coated tools, and optimizing tool geometry and cutting/grinding parameters for ceramic materials to reduce chipping and cracking risks.
3. Auxiliary equipment: High-precision spindles, dynamic balancing systems, ultra-high-pressure cooling and filtration units, vibration suppression systems, and dedicated fixtures to ensure machining stability and surface integrity.

Main machining methods for CNC machining of ceramic flanges:

1. Precision milling and drilling: Used to machine the flange profile, bolt-hole pattern, and mating surfaces; five-axis linkage can complete complex positioning and hole machining in a single setup.
2. External cylindrical, face/end-face, and surface grinding: Used to improve flange face flatness and control flange thickness tolerances to meet sealing and mating requirements.
3. Diamond grinding and polishing: Perform fine grinding and polishing of sealing and contact surfaces to reduce surface roughness and enhance sealing performance.
4. Ultrasonic vibration assisted machining (USM): Reduce cutting forces, limit crack propagation, and improve edge integrity on thin-walled or highly brittle structures.
5. Micro-hole and deep-hole machining: Achieve high-precision through holes, locating holes, and guide slots via micro-drilling, deep-hole guiding processes, or special fixtures.

Cooling, chip evacuation, and fixturing:

1. Cooling strategies: Use controlled cooling and filtered lubricants to reduce local heat buildup and prevent cracks or dimensional/form drift caused by thermal stress.
2. Chip evacuation and cleaning: Design appropriate toolpaths and chip evacuation channels, combined with ultrasonic and high-pressure cleaning processes to prevent grinding debris from embedding in sealing surfaces or bolt holes, ensuring assembly reliability.
3. Fixturing solutions: Custom rigid or flexible fixtures, concentric locating devices, and multi-point support structures to ensure stability and prevent deformation of thin-walled or irregular flanges during machining.

Machinable materials and typical applications:

1. Typical materials: Dense alumina (Al2O3), silicon nitride (Si3N4), silicon carbide (SiC), aluminum nitride (AlN), and functional composite ceramic materials.
2. Typical applications: Corrosion-resistant and wear-resistant ceramic flanges, chemical and pharmaceutical pipeline connections, semiconductor process couplings, high-temperature sealing interfaces, and sanitary flanges.
