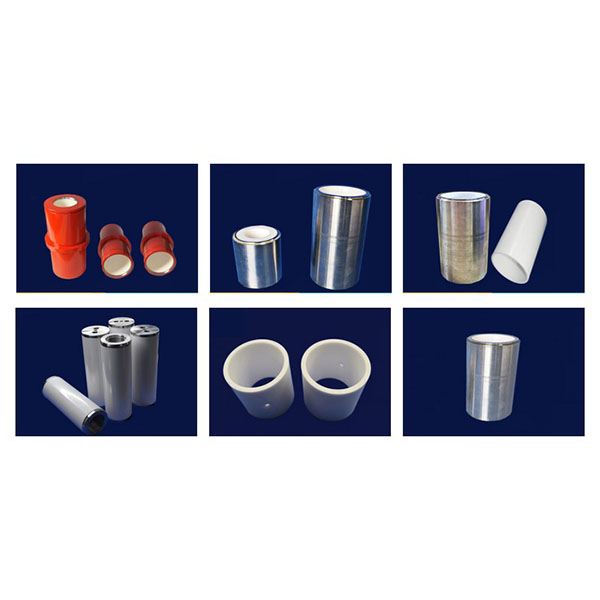

CNC machining of ceramic cylinder liners for precision

With specialized machine tools, diamond tooling, and mature processes, we achieve precise internal bore forming, low friction coefficients, and long-lasting wear and corrosion resistance tailored to the high hardness and brittleness of ceramic materials, making them suitable for engines, pumps, compressors, and various high-temperature, high-wear, or corrosive fluid service conditions.

Equipment and tooling:

1. Machines and rigidity: Equipped with high-rigidity three-axis and five-axis CNC milling machines, CNC lathes, precision external cylindrical grinders, internal bore grinders, honing machines, and specialized micro‑machining equipment to meet the high-precision requirements for bore positioning, concentricity, and cylindricity.
2. Tools and consumables: Using diamond internal-bore turning tools, diamond end mills, diamond grinding wheels, ultra‑hard coated tools, and fine‑grinding consumables, we optimize tool geometry and cutting/grinding parameters for ceramics to reduce chipping, cracking, and thermal damage risks.
3. Auxiliary equipment: High‑precision spindles, ultra‑high‑pressure cooling and particulate filtration systems, vibration suppression devices, and dedicated clamping fixtures (mandrels, sleeves, elastic locating devices) to ensure machining stability and surface integrity.

Main machining methods for CNC machining of ceramic cylinder liners:

1. Precision turning/milling and internal boring: Used for roughing and semi-finishing of liner bores to ensure part datum and concentric positioning.
2. Internal bore grinding and honing: Using diamond grinding and fine honing to achieve target radial tolerances and low surface roughness.
3. Ultrasonic vibration assisted machining (USM) and diamond polishing: Reduce cutting forces and suppress crack propagation, suitable for thin‑walled or highly brittle liner structures.
4. EDM and micro‑machining: Used for local forming and trimming of complex fixture locations or hard‑to‑machine features.
5. Polishing and chemical mechanical polishing (CMP): Employed to achieve mirror‑grade or ultra‑low roughness sealing contact surfaces and sliding fits, reducing friction and extending service life.

Cooling, chip evacuation, and fixturing:

1. Cooling strategies: Use controlled cooling and filtered lubricants to avoid local temperature rise that can cause thermal stress and dimensional drift; where necessary, adopt cooling circulation and temperature‑controlled fixtures.
2. Chip evacuation and cleaning: Optimize toolpaths and chip evacuation channels, combined with ultrasonic and high‑pressure cleaning, air blow‑off, and vacuum chip removal to prevent particles embedding in bore surfaces and affecting sealing and wear.
3. Fixturing solutions: Custom mandrels, concentric locating fixtures, flexible supports, and multi‑point support structures to ensure stability and prevent deformation of thin‑walled parts during machining.

Machinable materials and typical applications for CNC machining of ceramic cylinder liners:

1. Typical materials: Dense alumina (Al2O3), silicon nitride (Si3N4), silicon carbide (SiC), aluminum nitride (AlN), and functional ceramic composite materials.
2. Typical applications: Sliding bearing liners, wear‑ and corrosion‑resistant sleeves, cylinder liners for metering and compression equipment, and high‑wear sealing components for semiconductor or chemical processing equipment.
