cast pump body design and advanced manufacturing process

cast pump body design and advanced manufacturing process

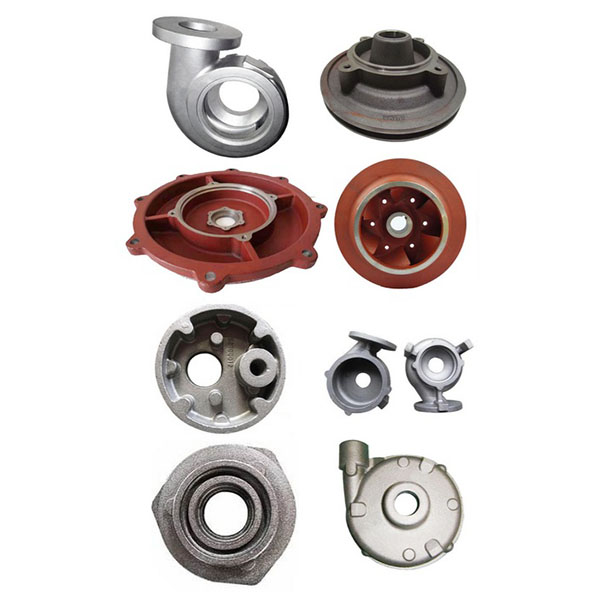

cast pump body provides a robust cast housing for pump equipment, supporting the rotor, bearings and other internal components while withstanding operating pressure and corrosive media.

Description

depending on the application environment, cast pump body can be made from gray cast iron (ht200 series), ductile/nodular cast iron (qt400 series), stainless steel (304, 316) or aluminum alloys. cast pump body can meet general water transfer requirements and is also suitable for demanding conditions such as chemical processing, seawater and oil industry applications.

key features:

  1. high strength and good stability: integral cast structure provides strong load-bearing capacity and minimal deformation during long-term operation.
  2. corrosion and wear resistance: corrosion-resistant materials or surface treatments (shot peening, spraying, plating, etc.) can be selected according to working conditions.
  3. high dimensional accuracy: precision machining ensures geometric tolerances and coaxiality of critical mating surfaces such as bearing seats, sealing faces and flanges.
  4. good sealing performance: accurate mating faces and machining processes reduce leakage risk and facilitate compatibility with various sealing elements.
  5. customizable: supports production to drawings, optimization of wall thickness and cavity structure, and customization of special materials and surface treatments.
  6. easy maintenance: reasonable cavity layout and installation flange design facilitate disassembly and maintenance.

materials and processes:

  1. common materials: gray cast iron (ht200 series), ductile/nodular cast iron (qt400 series), stainless steel (304, 316), corrosion-resistant alloys and aluminum alloys.
  2. main process flow: pattern making, melting and charge preparation, casting and molding, sand removal and heat treatment, rough and finish machining, surface treatment, dimensional and performance inspection, packing and shipment.
  3. machining capabilities: capable of machining critical mating surfaces, drilling and tapping, turning and end-face treatment to meet iso, ansi and other standard requirements.

application areas:

cast pump body is suitable for centrifugal pumps, chemical pumps, sewage pumps, seawater desalination pumps, oil and gas transfer pumps, fire pumps, hvac systems and agricultural irrigation.
