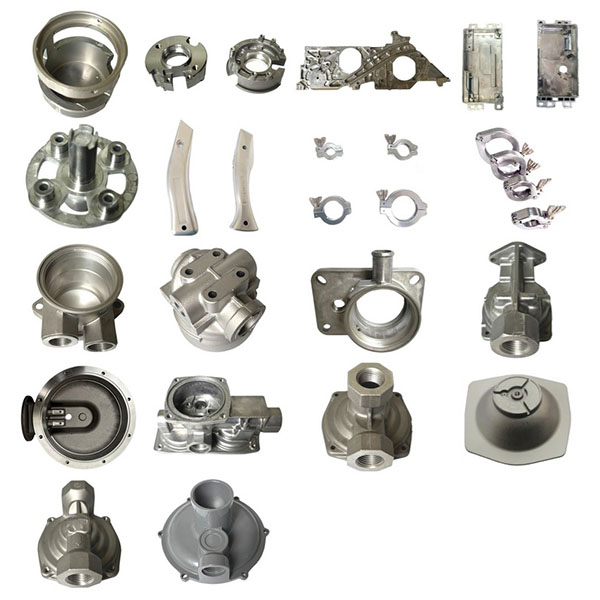

aluminum alloy die-cast parts for rugged applications

Aluminum alloy die-cast parts are mass-produced using high-pressure die casting, balancing strength, dimensional stability, heat dissipation performance, and surface quality.

Main materials and performance characteristics:

1. Aluminum alloy materials: Common grades include die-casting alloys such as ADC12 and A380; higher-strength or higher-thermal-conductivity aluminum alloys can also be selected according to performance requirements.
2. Mechanical properties: Provide good strength and rigidity, suitable for bearing structural loads and mechanical connections.
3. Thermal properties: Excellent thermal conductivity facilitates heat-dissipation design, suitable for enclosures and heat-dissipation components of thermally sensitive elements.
4. Surface quality: Die-cast parts can achieve relatively high surface finish, which is convenient for subsequent anodizing, painting, or sandblasting surface treatments.
5. Machinability and assemblability: Secondary machining (drilling, tapping, milling, etc.) can be performed after die casting to meet assembly and fit requirements.

Design recommendations:

1. Wall thickness and transitions: Use uniform wall thickness design and provide fillets or chamfers at thickness transitions to reduce stress concentration and casting defects.
2. Ribs and supports: Design ribs in areas requiring increased rigidity, controlling rib thickness relative to the main wall thickness to prevent warping or filling difficulties.
3. Gates and venting: Optimize gate locations and sizes, and design vent grooves at parting lines and critical positions to reduce trapped air and burn marks.
4. Dimensional tolerances and machining allowances: Reserve machining allowances for critical mating surfaces, threaded holes, and sealing faces, and specify tolerance grades on drawings.
5. Demolding and ejection: Design appropriate ejection mechanisms or slider structures according to part geometry to ensure safe and reliable part release and ejection.

Typical application areas of aluminum alloy die-cast parts:

1. Automotive industry: instrument housings, heat-dissipation components, structural brackets, and functional exterior parts.
2. Communications and electronic equipment: enclosures, heat-dissipation structures, interface covers, etc.
3. Industrial equipment and control cabinets: motor housings, junction boxes, machine tool components, etc.
4. Lighting and outdoor equipment: streetlight housings, LED heat-dissipation modules, and protective enclosures.
5. Consumer electronics and home appliances: premium appliance panels, decorative components, and protective housings.

Aluminum alloy die-cast parts are suitable for various electronic devices, automotive components, industrial equipment, and consumer products that require metal enclosures, structural parts, or decorative components, providing consistency and cost-effectiveness in high-volume production.
